8719147588013
article number: MZ928-MOD
product id: 58801
MZ928 drum module, 13 trigger inputs, 8 direct outs, 55 kits, 906 sounds, TFT LCD screen, no PSU

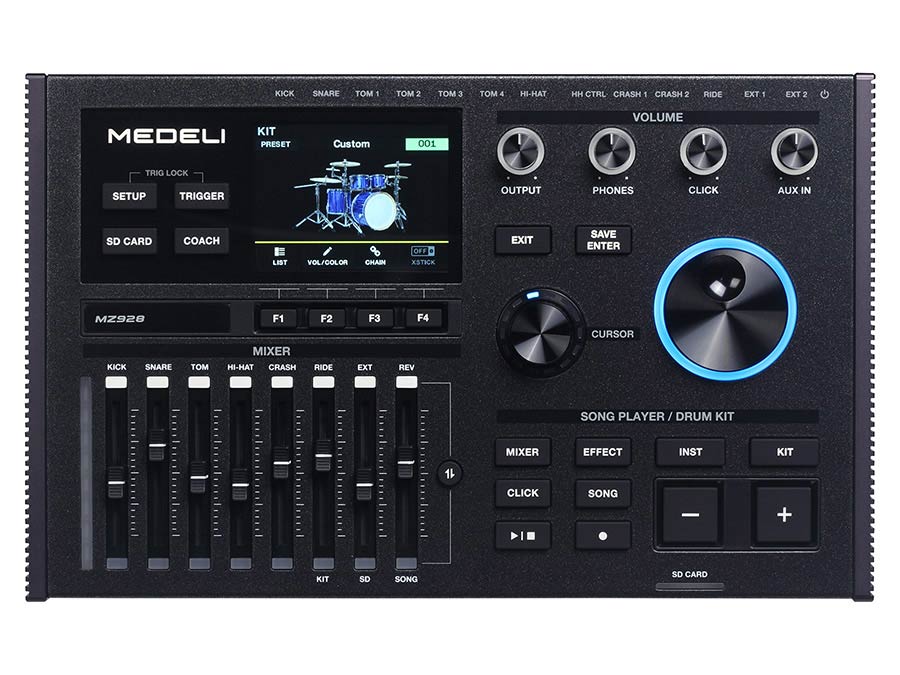

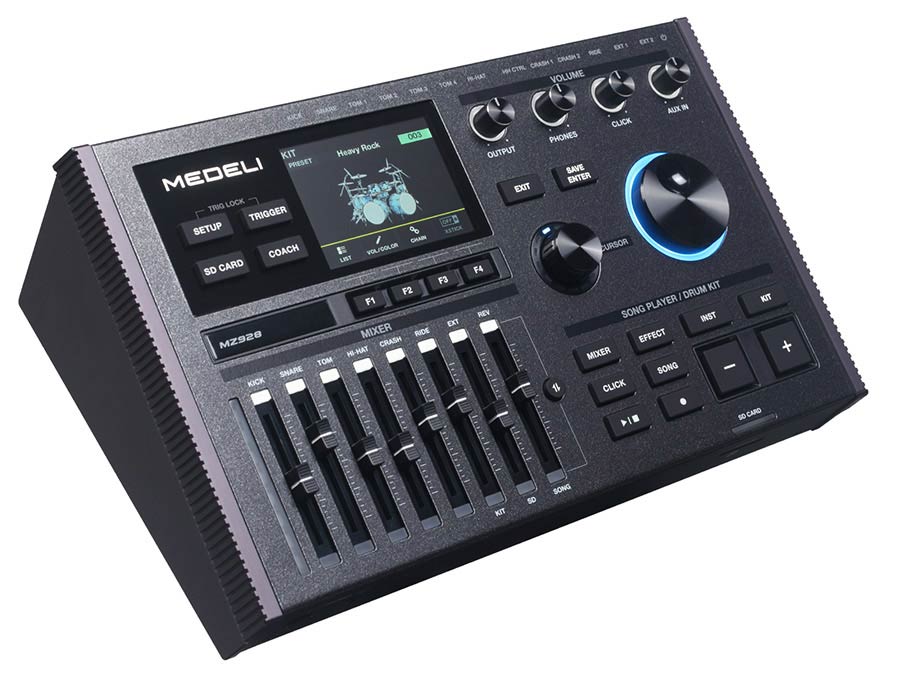

MZ928 digital drum module

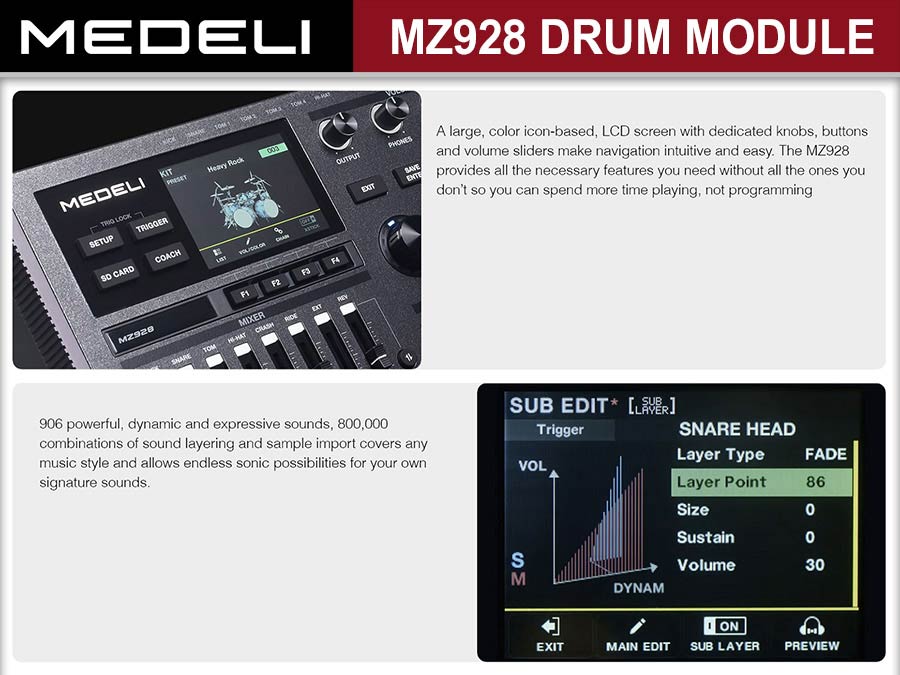

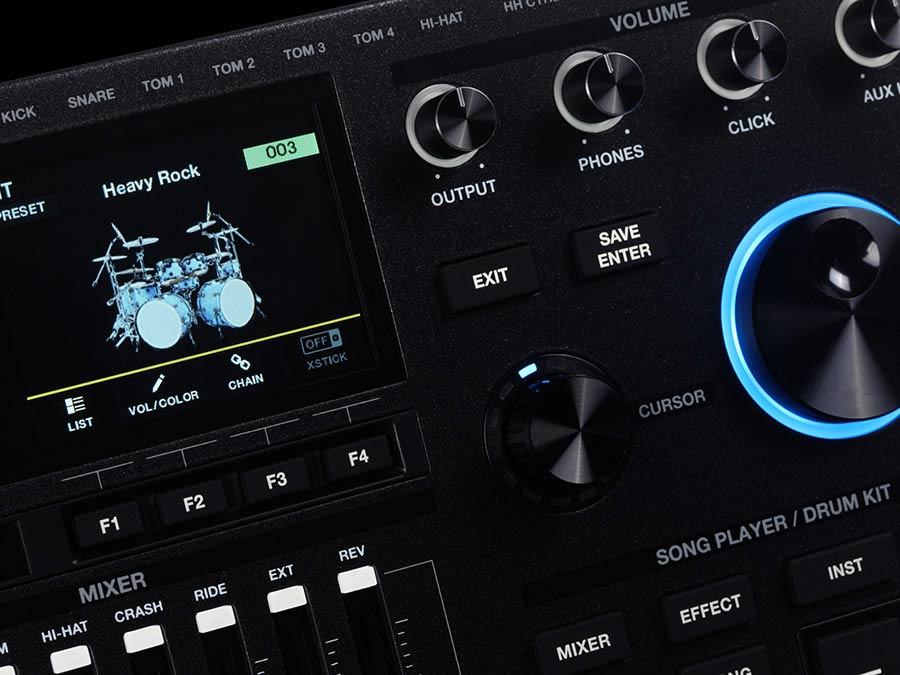

A large, color icon-based, LCD screen with dedicated knobs, buttons and volume sliders make navigation intuitive and easy. The MZ928 provides all the necessary features you need without all the ones you don’t so you can spend more time playing, not programming.
906 powerful, dynamic and expressive sounds, 800,000 combinations of sound layering and sample import covers any music style and allows endless sonic possibilities for your own signature sounds.

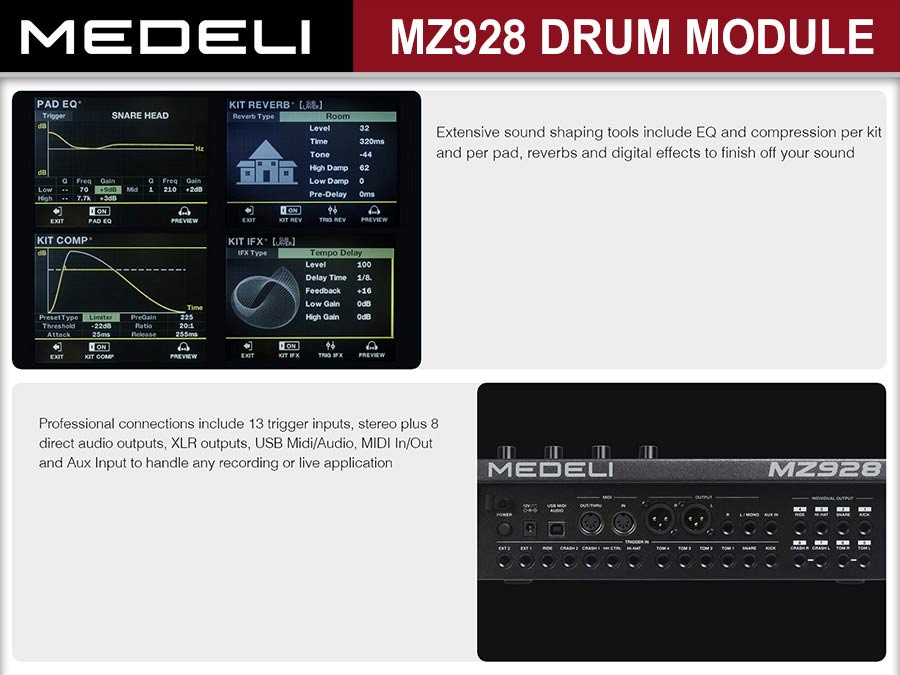

Extensive sound shaping tools include EQ and compression per kit and per pad, reverbs and digital effects to finish off your sound.

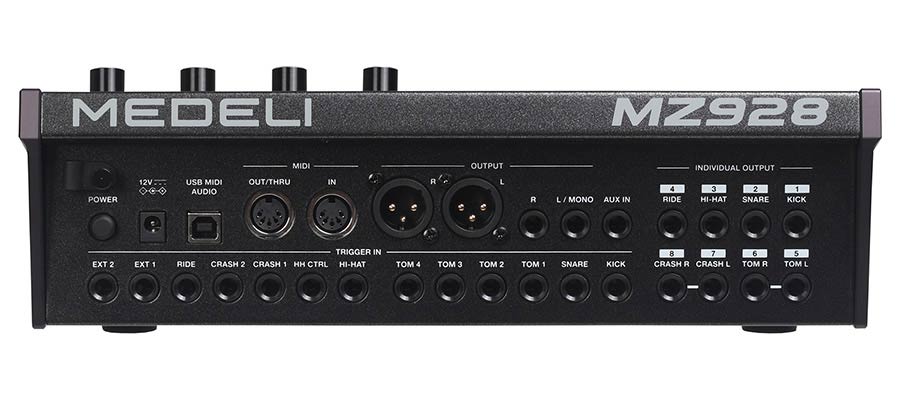

Professional connections include 13 trigger inputs, stereo plus 8 direct audio outputs, XLR outputs, USB Midi/Audio, MIDI In/Out and Aux Input to handle any recording or live application.
!! This product does not have the power supply included !!
The Medeli MAD12/2000 is a suitable power supply. TMA Art code 41169.
specifications
| display | 3.5" (320 x 240) color tft lcd |
| max polyphony | 256 |
| drum kit | 55 + 45 user |
| sound / voice | 906 + user sample (128mb max.) |
| song | 120 presets (100 midi + 20 audio) + 2 users |
| effect | kit effect (reverb, eq, compressor, ifx)
trigger effect (eq, compressor) |
| record | midi • audio |
| audio playback | wav • mp3 |
| coach | quiet count • beat check • change up |
| metronome | click voice • volume • time signature • interval select |
| tempo | 30-280 |
| volume control | 4 x knobs • 8 x sliders |
| external memory | sd card (64gb max.) |
| trigger para | gain • threshold • h/r response • cross stick level
curve • crosstalk • retrig cancel • splash sensitivity • hh close point |
| bluetooth | midi & audio |
| usb | 1 x usb-b (midi) |
| midi | midi in / out |
| headphone jack | 1 x 1/4" • 1 x 1/8" |
| aux-in jack | 1 x 1/8" |
| output jack | 2 x 1/4" mono • 2 x xlr • 8 x direct out |
| power | dc12v |
