article number: TGD7N
product id: 57644

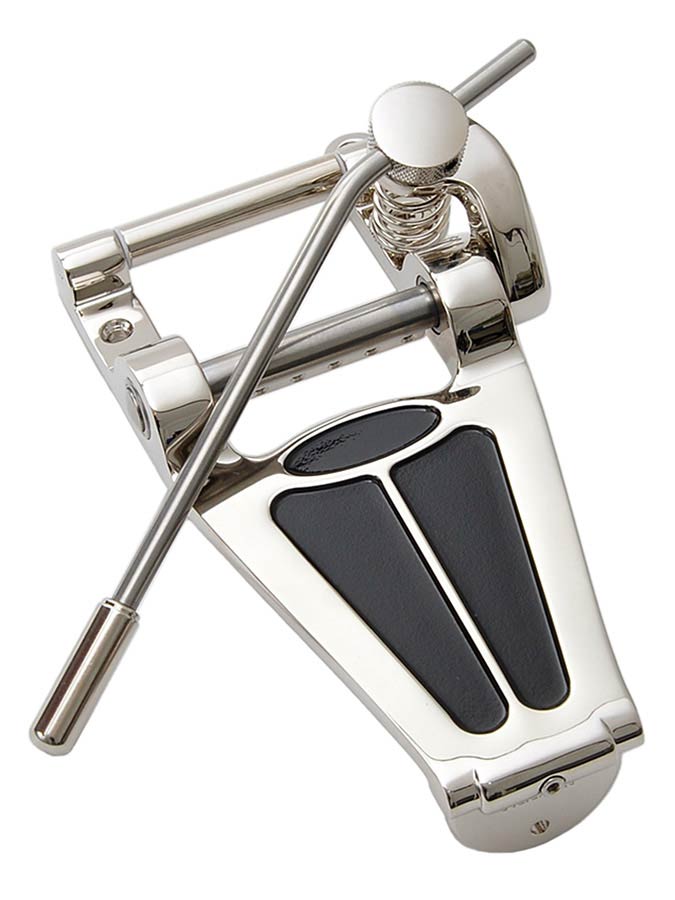

G7 top-mounted vibrato systems (long), round arm, nickel
Inspired by the Duesenberg Diamond Deluxe Tremola. Identical in function and material quality! An aluminium frame ensures excellent transmission of the resonances, high-quality bearings allow the well-known smooth tremolo action and ensure optimum tuning stability. The 360° rotatable round arm can be adjusted in length, response, position and movement. Easy string change due to holes in the axis. As easy as stringing a stop tailpiece guitar. Simply the best!

Length: 188 mm (incl. the front eyelet)
Length from Frame: 176 mm
Overall width: 100 mm
Width at front: 84 mm
Width of tension roller: 55mm
String spacing at string axle: 45 mm
